Disegno Meccanico – 031

Disegno nr.: 031

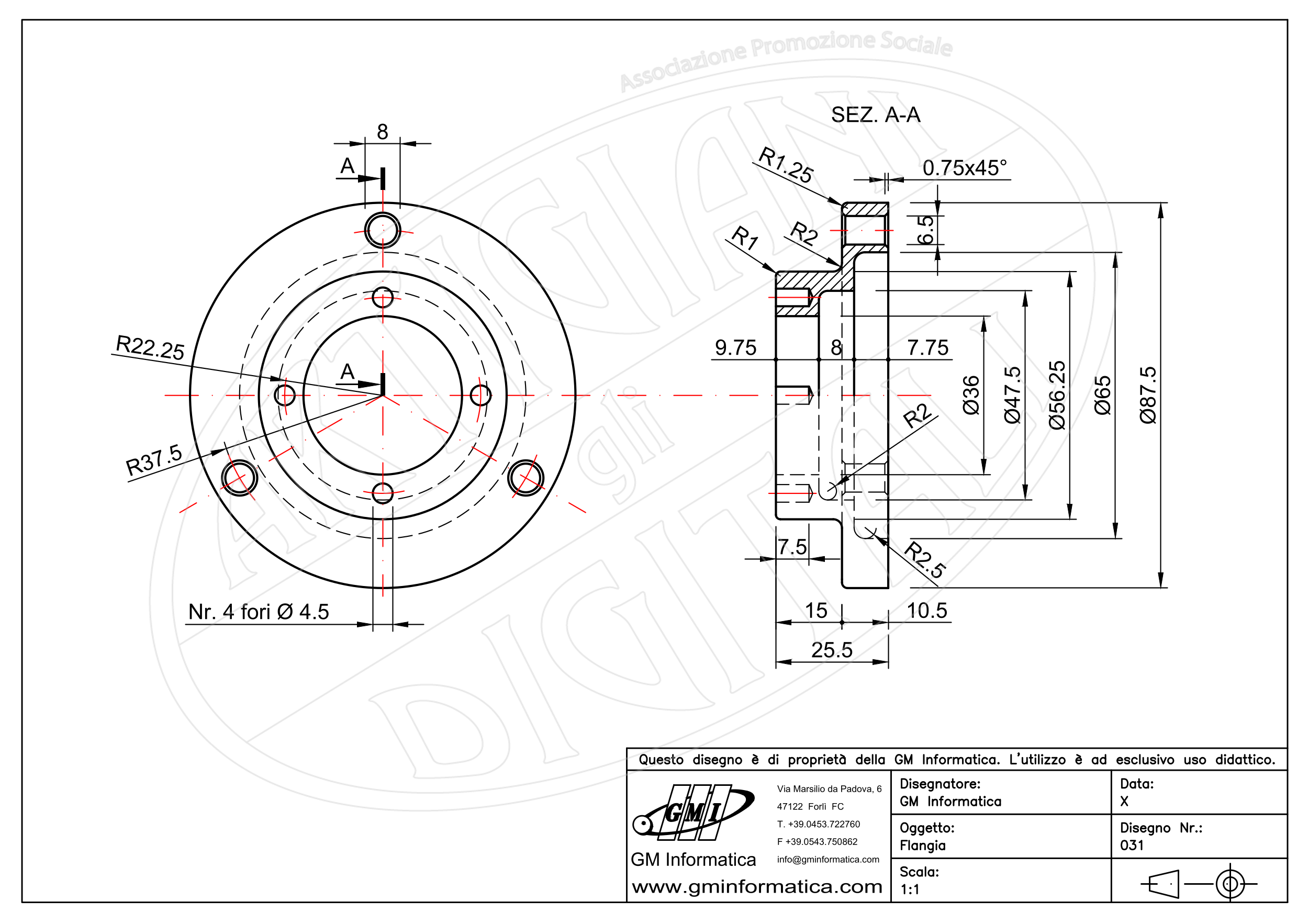

Oggetto: Flangia

Difficoltà 2D *

Difficoltà 3D *



031 – 2D

031 – 3D
