Mechanical 002

  • Disegno nr.: Mechanical Drawing 002
  • Oggetto: Staffa | Mechanical bracket
  • Difficoltà 2D *
  • Difficoltà 3D *

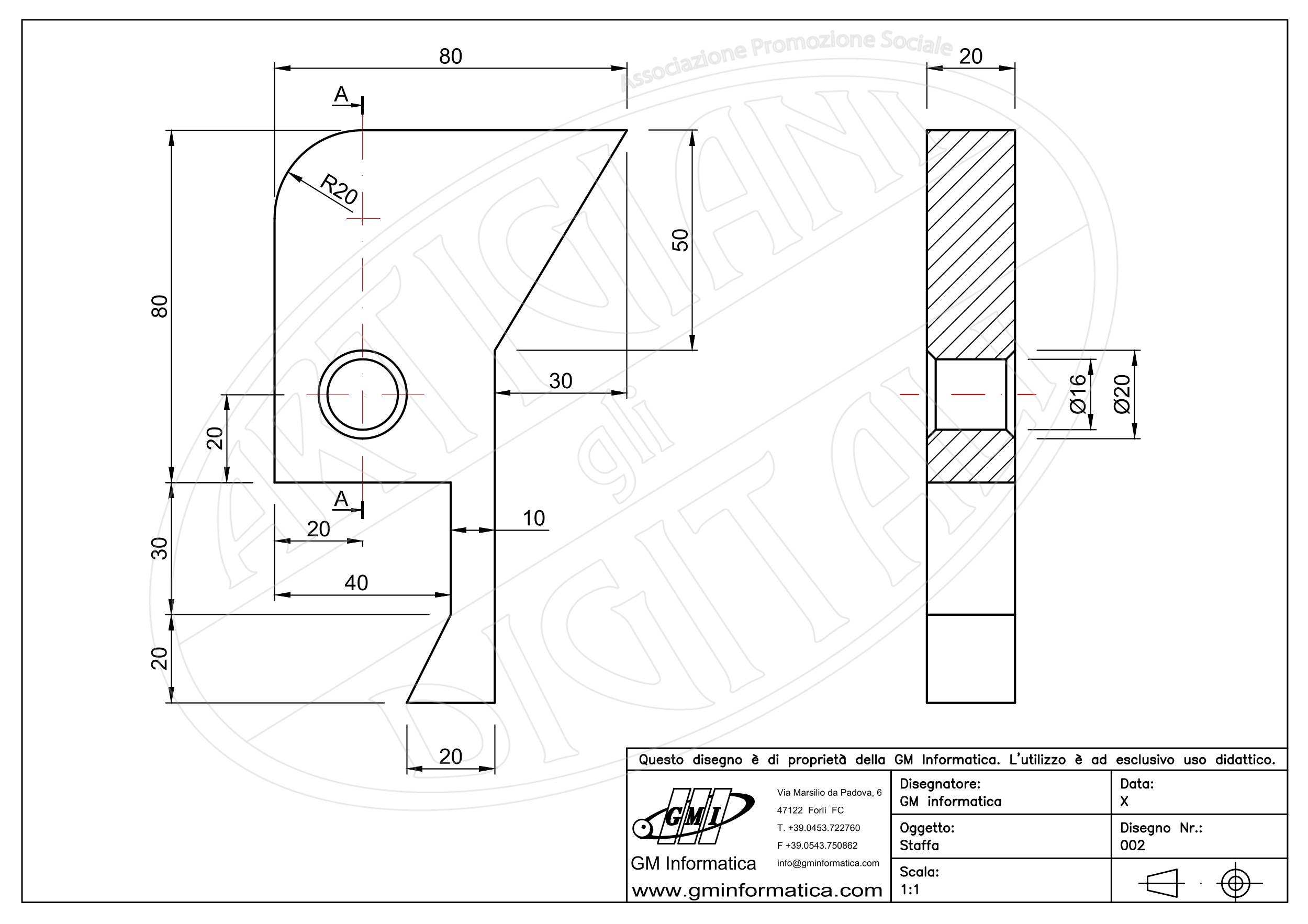

Mechanical Drawing 002 – 2D

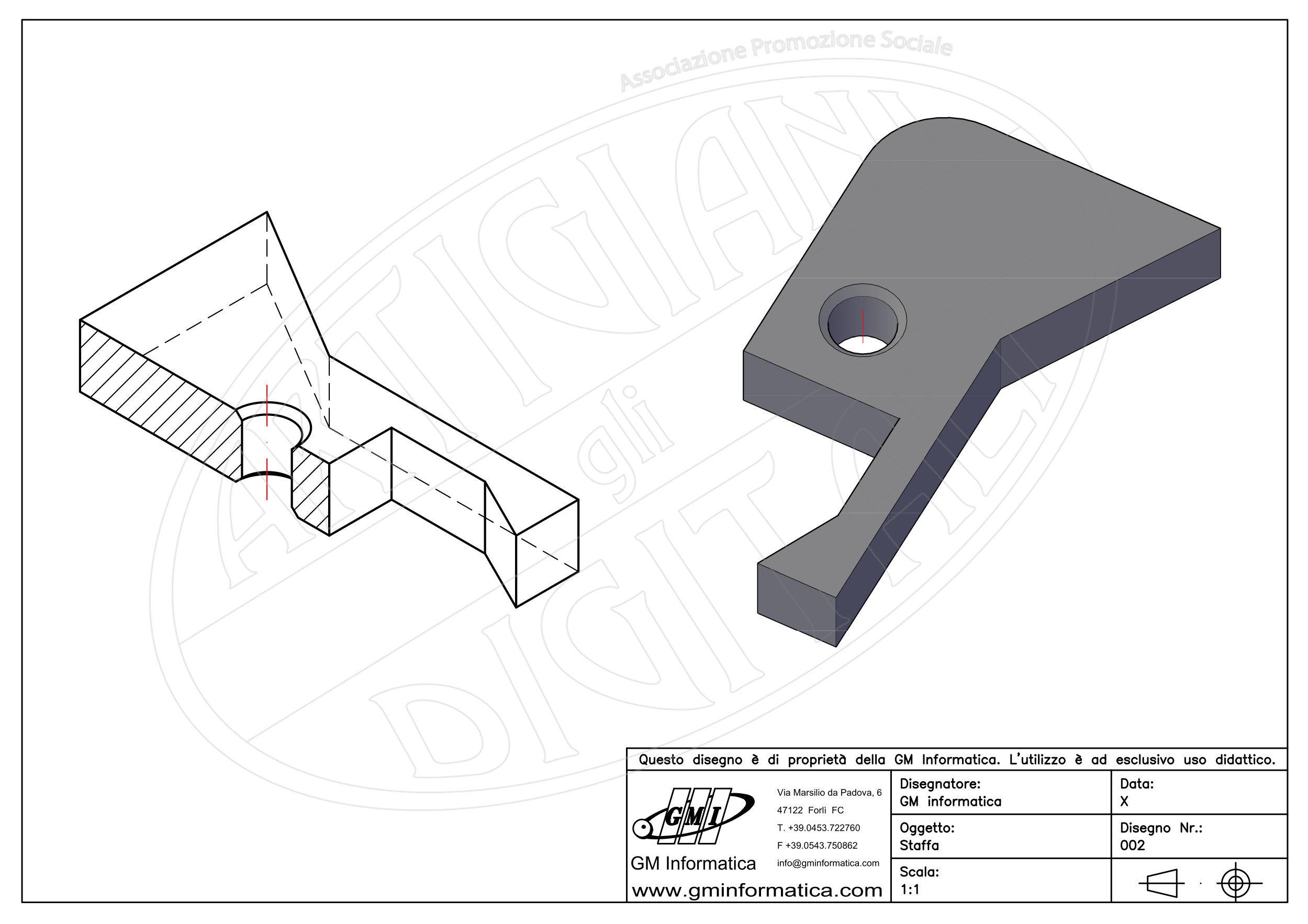

Mechanical Drawing 002 – 3D
