Mechanical 045

  • Disegno nr.: Mechanical Drawing 045
  • Oggetto: Albero | Axel
  • Difficoltà 2D *
  • Difficoltà 3D *

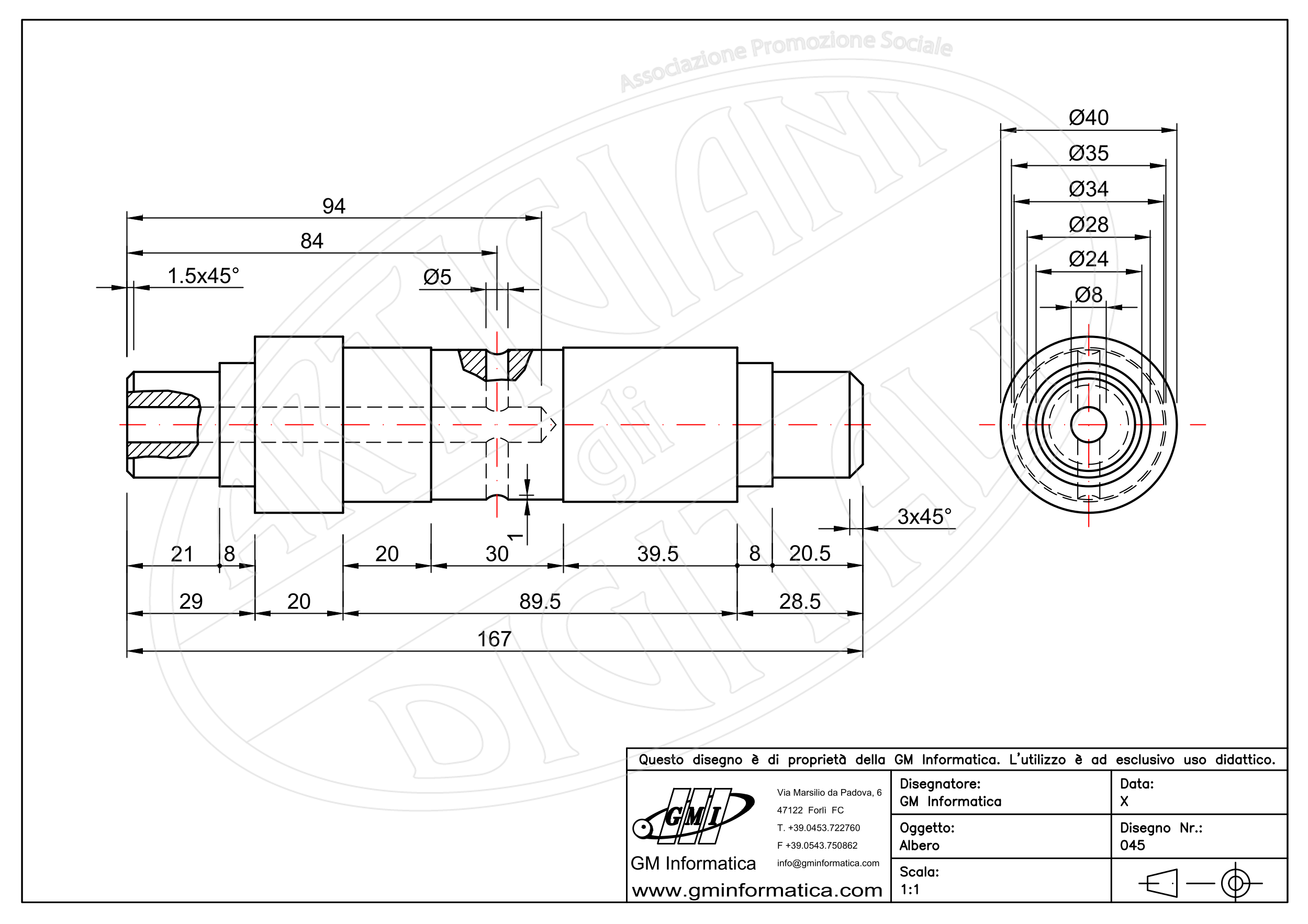

Mechanical Drawing 045 – 2D

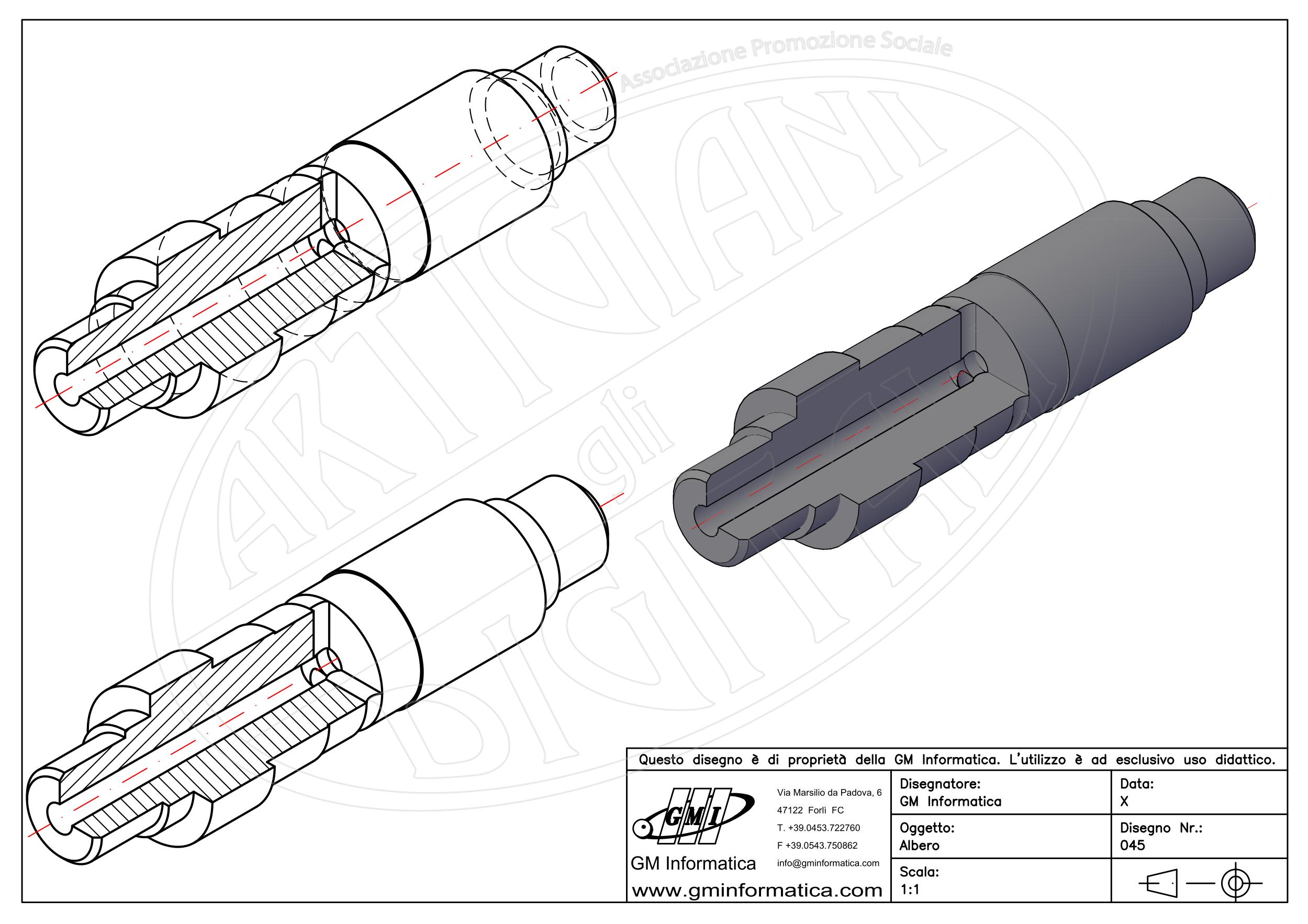

Mechanical Drawing 045 – 3D
