Mechanical 055

  • Disegno nr.: Mechanical Drawing 055
  • Oggetto: Supporto | Mechanical support
  • Difficoltà 2D *
  • Difficoltà 3D *

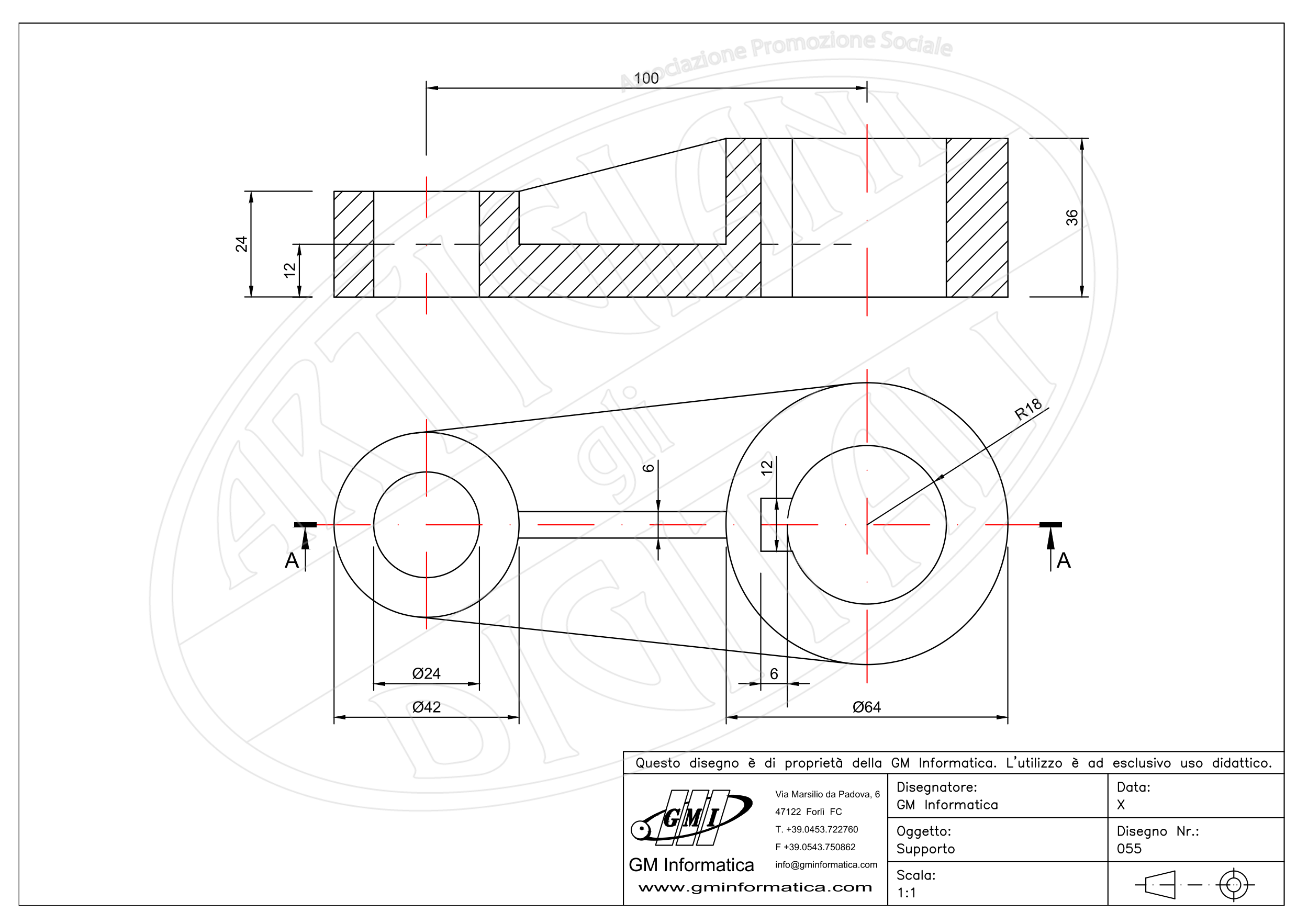

Mechanical Drawing 055 – 2D

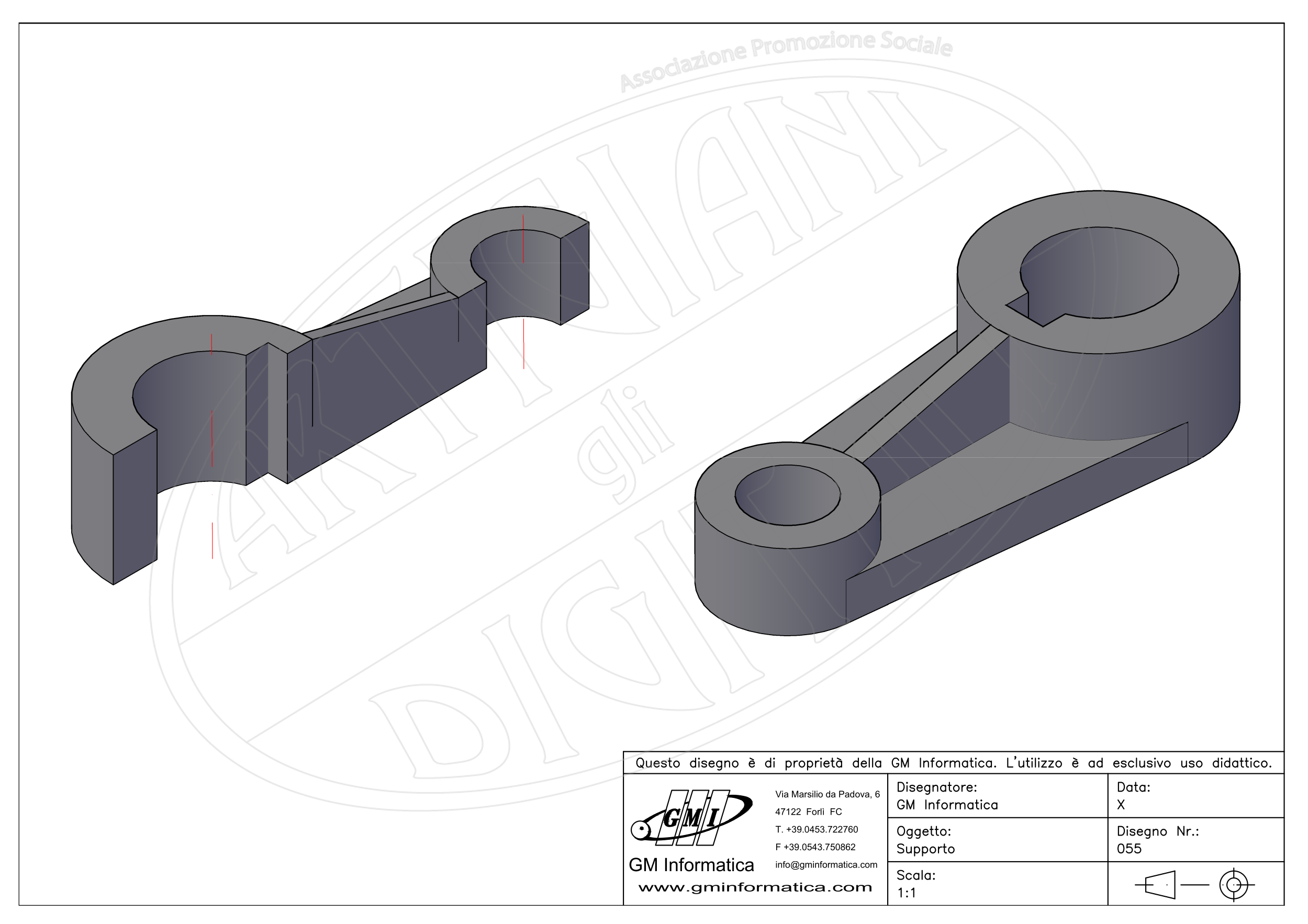

Mechanical Drawing 055 – 3D
