Mechanical 103

  • Disegno nr.: Mechanical Drawing 103
  • Oggetto: Supporto | Mechanical support
  • Difficoltà 2D *
  • Difficoltà 3D *

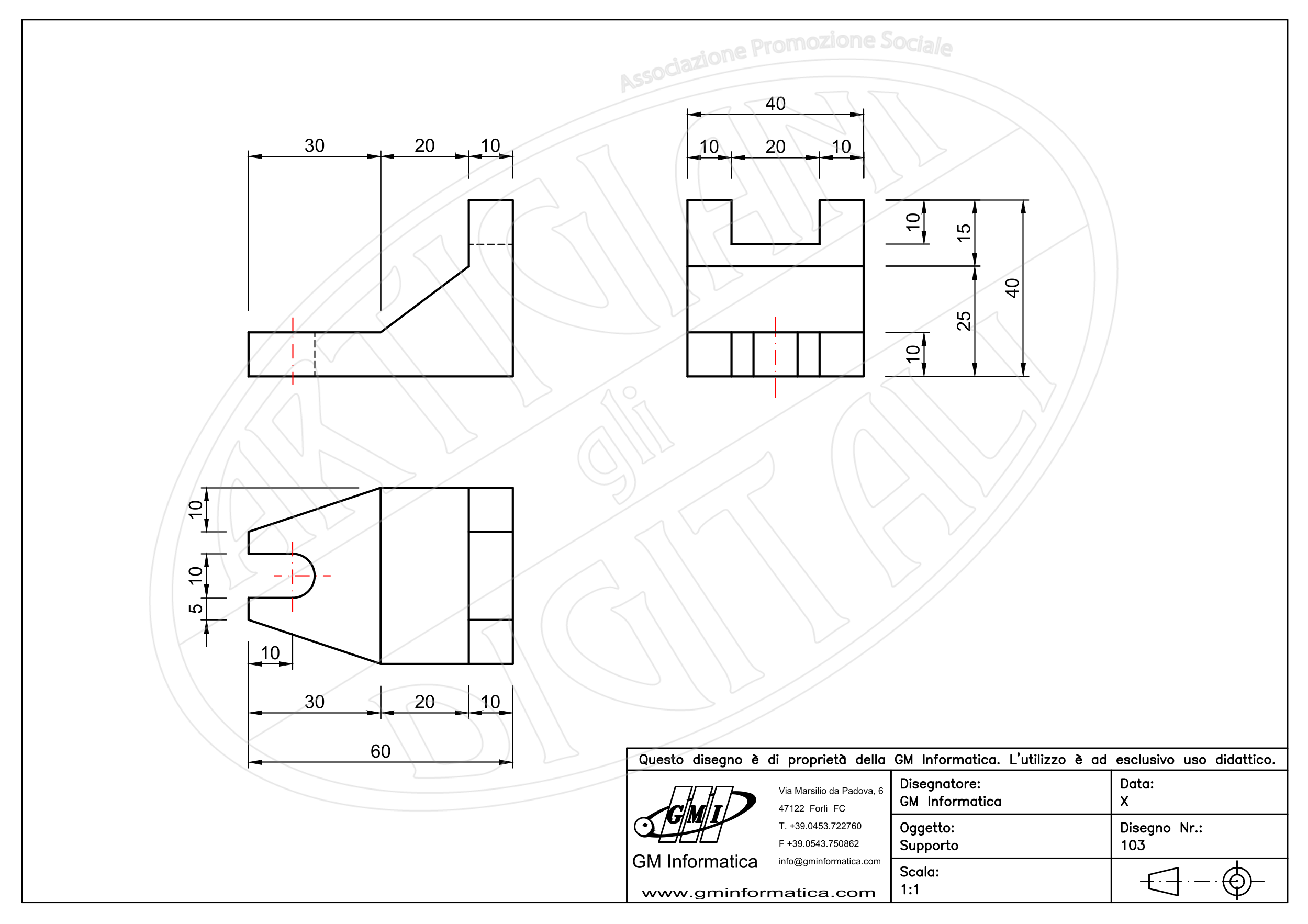

Mechanical Drawing 103 – 2D

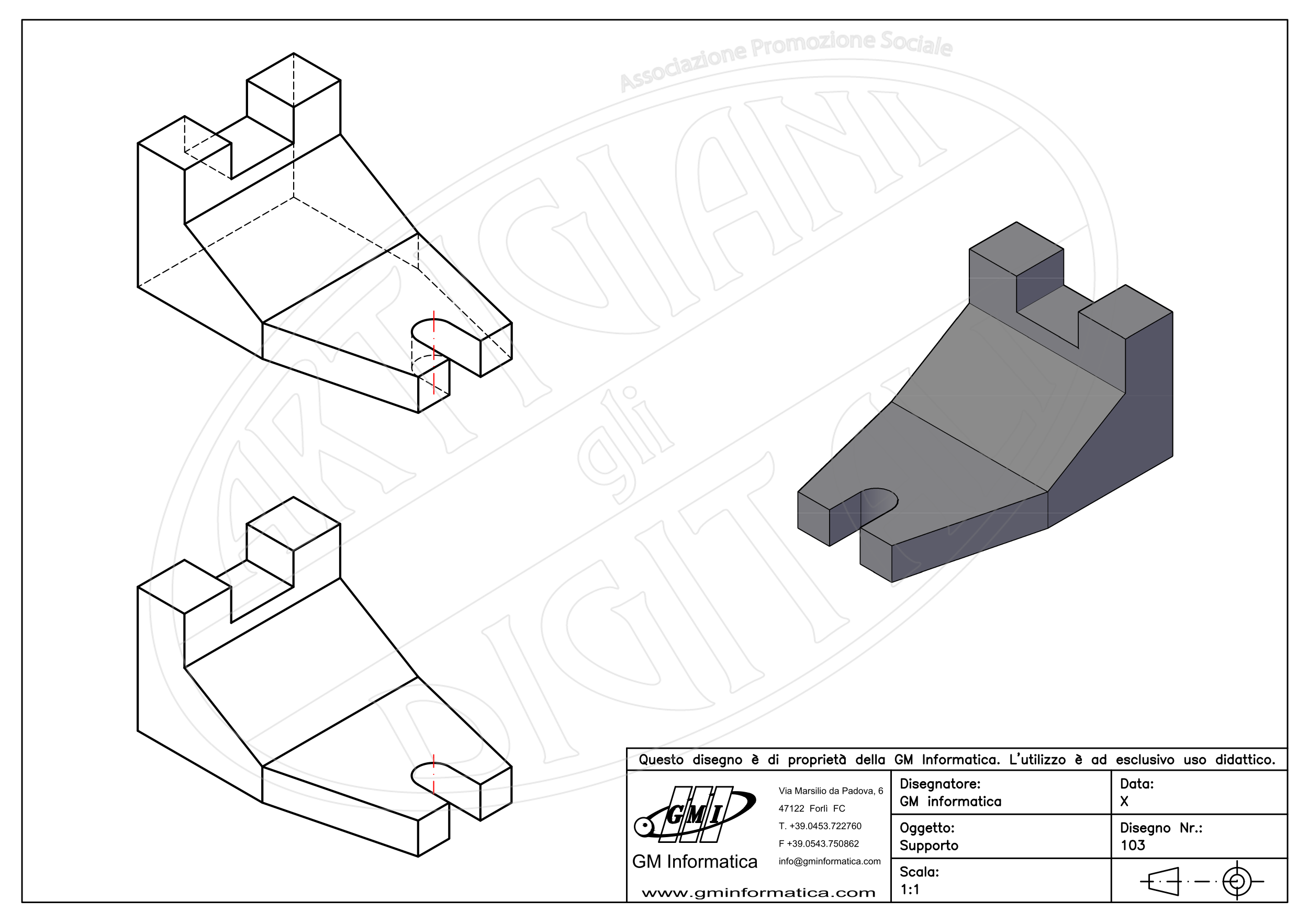

Mechanical Drawing 103 – 3D
